Fig : C1WL0171

3W EACH LED, WHITE COLOUR
VOLTAGE: 10~30V DC

BLICK NO.	SIZE	WATT	LED	LUMEN	DIMENSIONS
C1WL0171	204*75.63*79.46mm	36W	3W*12PCS	2160LM	8"
C1WL0185	357*75.63*79.46mm	72W	3W*24PCS	4320LM	14"
C1WL0172	561*75.63*79.46mm	120W	3W*40PCS	7200LM	22"
C1WL0186	816*75.63*79.46mm	180W	3W*60PCS	10800LM	32"
C1WL0187	1071*75.63*79.46mm	240W	3W*80PCS	14400LM	42"
C1WL0188	1326*75.63*79.46mm	300W	3W*100PCS	18000LM	52"

•

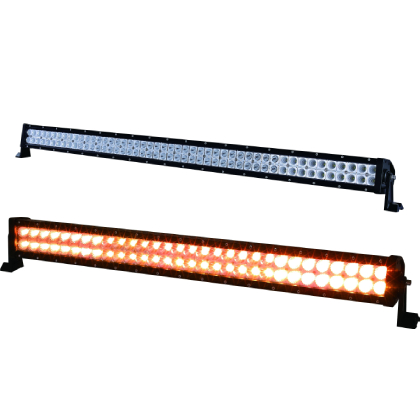

Fig : C1WL0233

3W EACH LED, DUAL COLOUR (WHITE & YELLOW), W/FLASHING MODE
VOLTAGE: 10~30V DC

BLICK NO.	SIZE	WATT	LED	LUMEN	DIMENSIONS
C1WL0233	204*75.63*79.46mm	36W	3W*12PCS	2880LM	8"
C1WL0243	306*75.63*79.46mm	60W	3W*20PCS	4800LM	12"
C1WL0244	357*75.63*79.46mm	72W	3W*24PCS	5760LM	14"
C1WL0245	561*75.63*79.46mm	120W	3W*40PCS	9600LM	22"
C1WL0246	816*75.63*79.46mm	180W	3W*60PCS	14400LM	32"
C1WL0247	1071*75.63*79.46mm	240W	3W*80PCS	19200LM	42"
C1WL0248	1326*75.63*79.46mm	300W	3W*100PCS	24000LM	52"

•

Fig : C1WL0173

3W EACH LED
VOLTAGE: 10~30V DC

BLICK NO.	SIZE	WATT	LED	LUMEN	DIMENSIONS
C1WL0173	95.7*63*107.83mm	18W	3W*6PCS	1200LM	4"
C1WL0174	161.1*63*107.83mm	36W	3W*12PCS	2400LM	6"
C1WL0175	229.3*63*107.83mm	54W	3W*18PCS	3600LM	9"
C1WL0182	297.5*63*107.83mm	72W	3W*24PCS	4800LM	12"
C1WL0183	365.7*63*107.83mm	90W	3W*30PCS	6000LM	14"
C1WL0184	433.9*63*107.83mm	108W	3W*36PCS	7200LM	17"
C1WL0193	502.1*63*107.83mm	126W	3W*42PCS	8400LM	20"
C1WL0194	570.3*63*107.83mm	144W	3W*48PCS	9600LM	22"
C1WL0195	706.7*63*107.83mm	180W	3W*60PCS	12000LM	28"
C1WL0196	774.9*63*107.83mm	198W	3W*66PCS	13200LM	31"
C1WL0197	911.3*63*107.83mm	234W	3W*78PCS	15600LM	36"

•

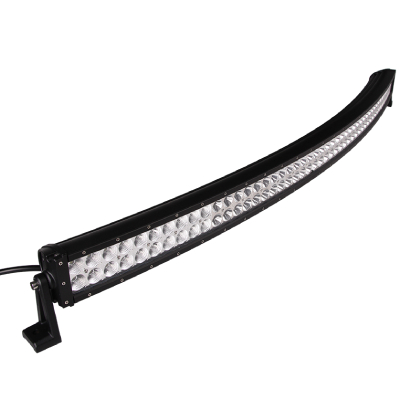

Fig : C1WL0164

3W EACH LED
VOLTAGE: 10~30V DC

BLICK NO.	SIZE	WATT	LED	LUMEN	DIMENSIONS
C1WL0164	560*75.63*79.46mm	120W	3W*40PCS	7200LM	22"
C1WL0189	814*75.63*79.46mm	180W	3W*60PCS	10800LM	32"
C1WL0190	1076*75.63*79.46mm	240W	3W*80PCS	14400LM	42"
C1WL0191	1265*75.63*79.46mm	288W	3W*96PCS	17280LM	50"
C1WL0192	1315*75.63*79.46mm	300W	3W*100PCS	18000LM	52"
